SAP ABAP Table `AGS_JOB_DEF` {Definition of a Background Job}

Home

                title {label: "SAP ABAP table AGS_JOB_DEF {Definition of a Background Job}", size: "20"}

# Entities

[AGS_JOB_DEF] {bgcolor: "tomato"}
*DEFINITION_ID {label: "CHAR (32)"}
*VERSION {label: "NUMC (10)"}
+JOB_STEP_ID {label: "CHAR (32)"}
+CONTEXT_ID {label: "CHAR (32)"}
+LINK_ID {label: "CHAR (32)"}
+INSTANCE_ID {label: "CHAR (32)"}
+MONITORING_ID {label: "CHAR (32)"}
+PARTNER_ID {label: "CHAR (32)"}
+ESCALATION_ID {label: "CHAR (32)"}
+ERRORHANDLING_ID {label: "CHAR (32)"}

[AGS_BUSNSS_CONT] {bgcolor: "#d0e0d0"}
*CONTEXT_ID {label: "CHAR (32)"}

[AGS_ERRORHANDLNG] {bgcolor: "#d0e0d0"}
*ERRORHANDLING_ID {label: "CHAR (32)"}
*PROCEDURE_GRP {label: "CHAR (10)"}
*PROCEDURE_TXT {label: "CHAR (10)"}

[AGS_ESCALATION] {bgcolor: "#d0e0d0"}
*ESCALATION_ID {label: "CHAR (32)"}
*ESCALATION_ORDER {label: "INT4 (10)"}

[AGS_JOB_INSTANCE] {bgcolor: "#d0e0d0"}
*INSTANCE_ID {label: "CHAR (32)"}
*LOGCMP {label: "CHAR (30)"}
*SYSTEM_NAME {label: "CHAR (8)"}
*SYSTEM_TYPE {label: "CHAR (10)"}
*SMSY_MANDT {label: "CHAR (3)"}

[AGS_JOB_LINK] {bgcolor: "#d0e0d0"}
*LINK_ID {label: "CHAR (32)"}
*LINK_TYPE {label: "CHAR (40)"}
*LINK_COUNT {label: "INT4 (10)"}

[AGS_JOB_STEP] {bgcolor: "#d0e0d0"}
*STEP_ID {label: "CHAR (32)"}
*STEP_ORDER {label: "INT4 (10)"}

[AGS_PARAM_MON] {bgcolor: "#d0e0d0"}
*MONITORING_ID {label: "CHAR (32)"}
*SOLUTION_ID {label: "NUMC (15)"}
*SCENARIO_ID {label: "NUMC (10)"}
*PROCESS_ID {label: "NUMC (10)"}
*STEP_ID {label: "NUMC (10)"}

[AGS_PARTNER] {bgcolor: "#d0e0d0"}
*PARTNER_ID {label: "CHAR (32)"}
*PARTNER_GRP {label: "CHAR (10)"}
*PARTNER_FCT {label: "CHAR (10)"}
*PARTNER_NO {label: "INT4 (10)"}

# Relationships

AGS_JOB_DEF *--* AGS_BUSNSS_CONT {label: "AGS_JOB_DEF-CONTEXT_ID = AGS_BUSNSS_CONT-CONTEXT_ID"}
AGS_JOB_DEF *--* AGS_ERRORHANDLNG {label: "AGS_JOB_DEF-ERRORHANDLING_ID = AGS_ERRORHANDLNG-ERRORHANDLING_ID"}
AGS_JOB_DEF *--* AGS_ESCALATION {label: "AGS_JOB_DEF-ESCALATION_ID = AGS_ESCALATION-ESCALATION_ID"}
AGS_JOB_DEF *--* AGS_JOB_INSTANCE {label: "AGS_JOB_DEF-INSTANCE_ID = AGS_JOB_INSTANCE-INSTANCE_ID"}
AGS_JOB_DEF *--* AGS_JOB_STEP {label: "AGS_JOB_DEF-JOB_STEP_ID = AGS_JOB_STEP-STEP_ID"}
AGS_JOB_DEF *--* AGS_JOB_LINK {label: "AGS_JOB_DEF-LINK_ID = AGS_JOB_LINK-LINK_ID"}
AGS_JOB_DEF *--* AGS_PARAM_MON {label: "AGS_JOB_DEF-MONITORING_ID = AGS_PARAM_MON-MONITORING_ID"}
AGS_JOB_DEF *--* AGS_PARTNER {label: "AGS_JOB_DEF-PARTNER_ID = AGS_PARTNER-PARTNER_ID"}

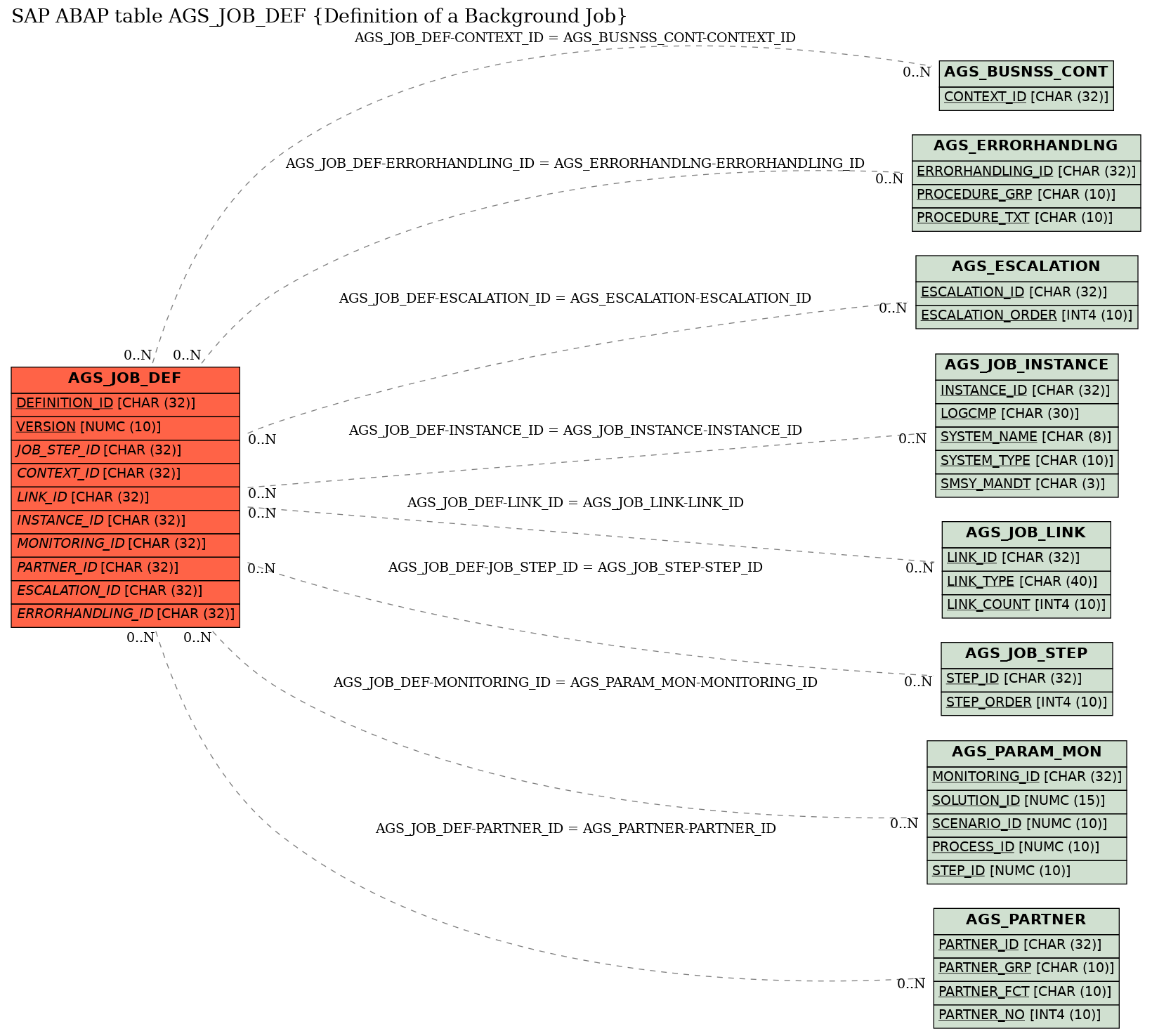

E-R Diagram for table AGS_JOB_DEF (Definition of a Background Job)

Foreign Key tables (8)

AGS_BUSNSS_CONT {Job Definition Context Information}
AGS_ERRORHANDLNG {Error Procedure}
AGS_ESCALATION {Escalation Sequence}
AGS_JOB_INSTANCE {Executable Entity of a Job (in System)}
AGS_JOB_LINK {Links to Applications}
AGS_JOB_STEP {Job Definition Steps}
AGS_PARAM_MON {Business Process Monitoring Parameters}
AGS_PARTNER {Contact persons}
