SAP ABAP Table `OIGSS` {TD Shipment Stages}

Home

                title {label: "SAP ABAP table OIGSS {TD Shipment Stages}", size: "20"}

# Entities

[OIGSS] {bgcolor: "tomato"}
*+CLIENT {label: "CLNT (3)"}
*+SHNUMBER {label: "CHAR (10)"}
*TSNUM {label: "NUMC (4)"}
+ROUTE {label: "CHAR (6)"}
+VSART {label: "CHAR (2)"}
+KNOTA {label: "CHAR (10)"}
+VSTEL {label: "CHAR (4)"}
+LSTEL {label: "CHAR (2)"}
+WERKA {label: "CHAR (4)"}
+LGORTA {label: "CHAR (4)"}
+KUNNA {label: "CHAR (10)"}
+LIFNA {label: "CHAR (10)"}
+KNOTZ {label: "CHAR (10)"}
+VSTEZ {label: "CHAR (4)"}
+LSTEZ {label: "CHAR (2)"}
+WERKZ {label: "CHAR (4)"}
+LGORTZ {label: "CHAR (4)"}
+KUNNZ {label: "CHAR (10)"}
+LIFNZ {label: "CHAR (10)"}
+TDLNR {label: "CHAR (10)"}
+KUNABLA {label: "CHAR (25)"}
+KUNABLZ {label: "CHAR (25)"}
+SKALSM {label: "CHAR (6)"}

[KNA1] {bgcolor: "#d0e0d0"}
*+MANDT {label: "CLNT (3)"}
*KUNNR {label: "CHAR (10)"}

[KNVA] {bgcolor: "#d0e0d0"}
*+MANDT {label: "CLNT (3)"}
*+KUNNR {label: "CHAR (10)"}
*ABLAD {label: "CHAR (25)"}

[LFA1] {bgcolor: "#d0e0d0"}
*+MANDT {label: "CLNT (3)"}
*LIFNR {label: "CHAR (10)"}

[OIGS] {bgcolor: "#d0e0d0"}
*+CLIENT {label: "CLNT (3)"}
*SHNUMBER {label: "CHAR (10)"}

[T000] {bgcolor: "#d0e0d0"}
*MANDT {label: "CLNT (3)"}

[T001L] {bgcolor: "#d0e0d0"}
*+MANDT {label: "CLNT (3)"}
*+WERKS {label: "CHAR (4)"}
*LGORT {label: "CHAR (4)"}

[T001W] {bgcolor: "#d0e0d0"}
*+MANDT {label: "CLNT (3)"}
*WERKS {label: "CHAR (4)"}

[T173] {bgcolor: "#d0e0d0"}
*MANDT {label: "CLNT (3)"}
*VSART {label: "CHAR (2)"}

[T683] {bgcolor: "#d0e0d0"}
*+MANDT {label: "CLNT (3)"}
*KVEWE {label: "CHAR (1)"}
*KAPPL {label: "CHAR (2)"}
*KALSM {label: "CHAR (6)"}

[TVKN] {bgcolor: "#d0e0d0"}
*+MANDT {label: "CLNT (3)"}
*KNOTE {label: "CHAR (10)"}

[TVLA] {bgcolor: "#d0e0d0"}
*MANDT {label: "CLNT (3)"}
*+VSTEL {label: "CHAR (4)"}
*LSTEL {label: "CHAR (2)"}

[TVRO] {bgcolor: "#d0e0d0"}
*+MANDT {label: "CLNT (3)"}
*ROUTE {label: "CHAR (6)"}

[TVST] {bgcolor: "#d0e0d0"}
*+MANDT {label: "CLNT (3)"}
*VSTEL {label: "CHAR (4)"}

# Relationships

OIGSS *--* T000 {label: "OIGSS-CLIENT = T000-MANDT"}
OIGSS *--* TVKN {label: "OIGSS-KNOTA = TVKN-KNOTE"}
OIGSS *--* TVKN {label: "OIGSS-KNOTZ = TVKN-KNOTE"}
OIGSS *--* KNVA {label: "OIGSS-KUNABLA = KNVA-ABLAD"}
OIGSS *--* KNVA {label: "OIGSS-KUNABLZ = KNVA-ABLAD"}
OIGSS *--* KNA1 {label: "OIGSS-KUNNA = KNA1-KUNNR"}
OIGSS *--* KNA1 {label: "OIGSS-KUNNZ = KNA1-KUNNR"}
OIGSS *--* T001L {label: "OIGSS-LGORTA = T001L-LGORT"}
OIGSS *--* T001L {label: "OIGSS-LGORTZ = T001L-LGORT"}
OIGSS *--* LFA1 {label: "OIGSS-LIFNA = LFA1-LIFNR"}
OIGSS *--* LFA1 {label: "OIGSS-LIFNZ = LFA1-LIFNR"}
OIGSS *--* TVLA {label: "OIGSS-LSTEL = TVLA-LSTEL"}
OIGSS ?--* TVLA {label: "OIGSS-LSTEZ = TVLA-LSTEL"}
OIGSS *--* TVRO {label: "OIGSS-ROUTE = TVRO-ROUTE"}
OIGSS 1--* OIGS {label: "OIGSS-SHNUMBER = OIGS-SHNUMBER"}
OIGSS *--* T683 {label: "OIGSS-SKALSM = T683-KALSM"}
OIGSS *--* LFA1 {label: "OIGSS-TDLNR = LFA1-LIFNR"}
OIGSS 1--* T173 {label: "OIGSS-VSART = T173-VSART"}
OIGSS *--* TVST {label: "OIGSS-VSTEL = TVST-VSTEL"}
OIGSS *--* TVST {label: "OIGSS-VSTEZ = TVST-VSTEL"}
OIGSS *--* T001W {label: "OIGSS-WERKA = T001W-WERKS"}
OIGSS *--* T001W {label: "OIGSS-WERKZ = T001W-WERKS"}

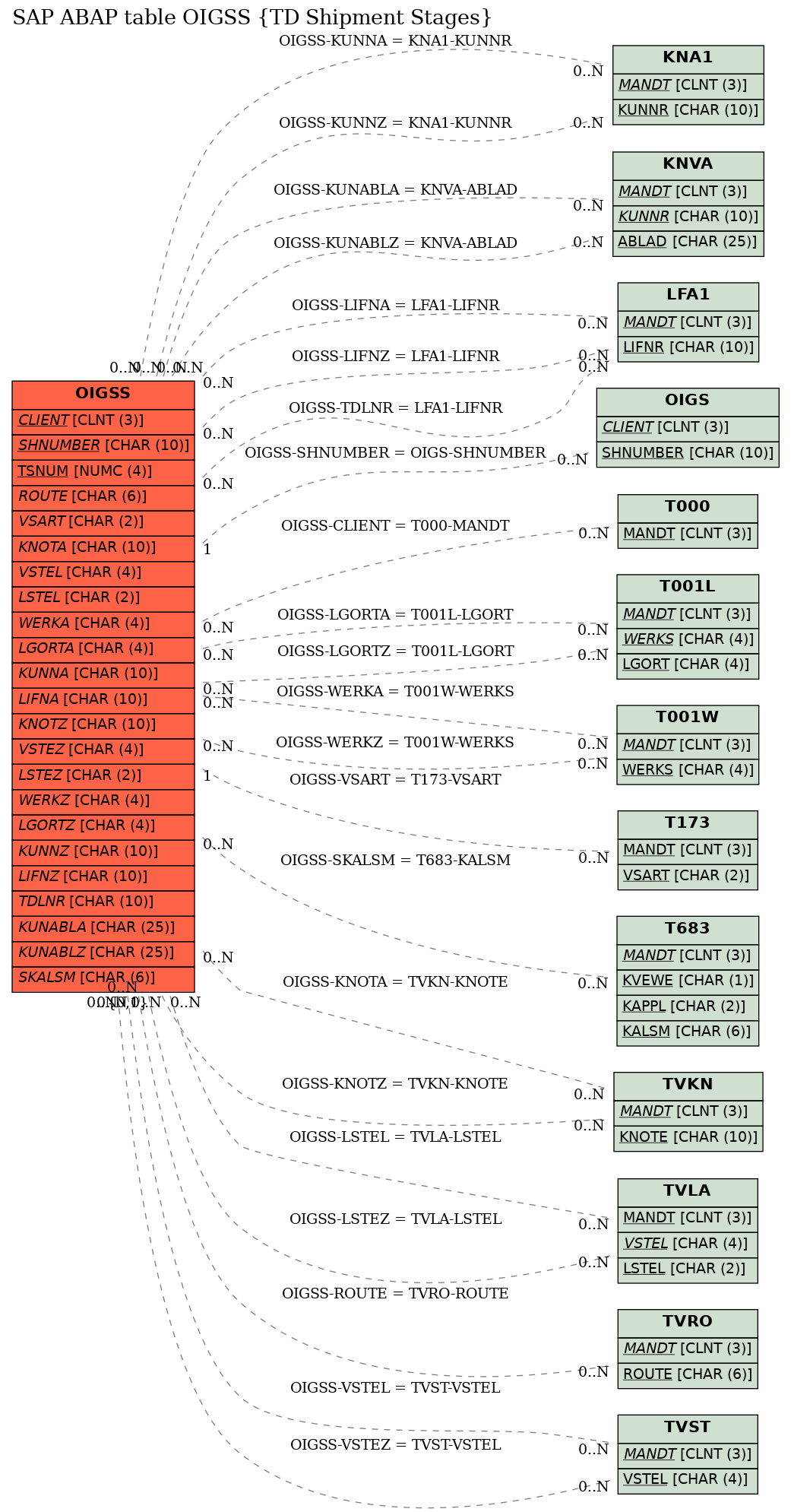

E-R Diagram for table OIGSS (TD Shipment Stages)

Foreign Key tables (13)

KNA1 {General Data in Customer Master}
KNVA {Customer Master Unloading Points}
LFA1 {Vendor Master (General Section)}
OIGS {TD Shipment Header}
T000 {Clients}
T001L {Storage Locations}
T001W {Plants/Branches}
T173 {Routes: Mode of Transport for Each Shipping Type}
T683 {Pricing procedures}
TVKN {Routes: Transportation Connection Points}
TVLA {Org.unit: Loading points per shipping point}
TVRO {Routes}
TVST {Organizational Unit: Shipping Points}
