SAP ABAP Table `OIJRRA` {OIL-TSW: Partner roles}

Home

                title {label: "SAP ABAP table OIJRRA {OIL-TSW: Partner roles}", size: "20"}

# Entities

[OIJRRA] {bgcolor: "tomato"}
*+MANDT {label: "CLNT (3)"}
*+KUNNR {label: "CHAR (10)"}
*+LIFNR {label: "CHAR (10)"}
*+WERK {label: "CHAR (4)"}
*+LGORT {label: "CHAR (4)"}
*+RTYPE {label: "CHAR (6)"}
*RDIFF {label: "CHAR (20)"}
+RPART {label: "CHAR (2)"}
+TSYST {label: "CHAR (10)"}
+LOCID {label: "CHAR (10)"}
+RULEID {label: "CHAR (3)"}

[KNA1] {bgcolor: "#d0e0d0"}
*+MANDT {label: "CLNT (3)"}
*KUNNR {label: "CHAR (10)"}

[LFA1] {bgcolor: "#d0e0d0"}
*+MANDT {label: "CLNT (3)"}
*LIFNR {label: "CHAR (10)"}

[OIJHTNR] {bgcolor: "#d0e0d0"}
*+MANDT {label: "CLNT (3)"}
*RULEID {label: "CHAR (3)"}

[OIJLOC] {bgcolor: "#d0e0d0"}
*+MANDT {label: "CLNT (3)"}
*LOCID {label: "CHAR (10)"}

[OIJRRPART] {bgcolor: "#d0e0d0"}
*+MANDT {label: "CLNT (3)"}
*RPART {label: "CHAR (2)"}

[OIJRRT] {bgcolor: "#d0e0d0"}
*+MANDT {label: "CLNT (3)"}
*RTYPE {label: "CHAR (6)"}

[OIJTS] {bgcolor: "#d0e0d0"}
*+MANDT {label: "CLNT (3)"}
*TSYST {label: "CHAR (10)"}

[T000] {bgcolor: "#d0e0d0"}
*MANDT {label: "CLNT (3)"}

[T001L] {bgcolor: "#d0e0d0"}
*+MANDT {label: "CLNT (3)"}
*+WERKS {label: "CHAR (4)"}
*LGORT {label: "CHAR (4)"}

[T001W] {bgcolor: "#d0e0d0"}
*+MANDT {label: "CLNT (3)"}
*WERKS {label: "CHAR (4)"}

# Relationships

OIJRRA *--* KNA1 {label: "OIJRRA-KUNNR = KNA1-KUNNR"}
OIJRRA *--* T001L {label: "OIJRRA-LGORT = T001L-LGORT"}
OIJRRA *--* LFA1 {label: "OIJRRA-LIFNR = LFA1-LIFNR"}
OIJRRA *--* OIJLOC {label: "OIJRRA-LOCID = OIJLOC-LOCID"}
OIJRRA *--* T000 {label: "OIJRRA-MANDT = T000-MANDT"}
OIJRRA 1--+ OIJRRPART {label: "OIJRRA-RPART = OIJRRPART-RPART"}
OIJRRA 1--* OIJRRT {label: "OIJRRA-RTYPE = OIJRRT-RTYPE"}
OIJRRA *--* OIJHTNR {label: "OIJRRA-RULEID = OIJHTNR-RULEID"}
OIJRRA *--* OIJTS {label: "OIJRRA-TSYST = OIJTS-TSYST"}
OIJRRA *--* T001W {label: "OIJRRA-WERK = T001W-WERKS"}

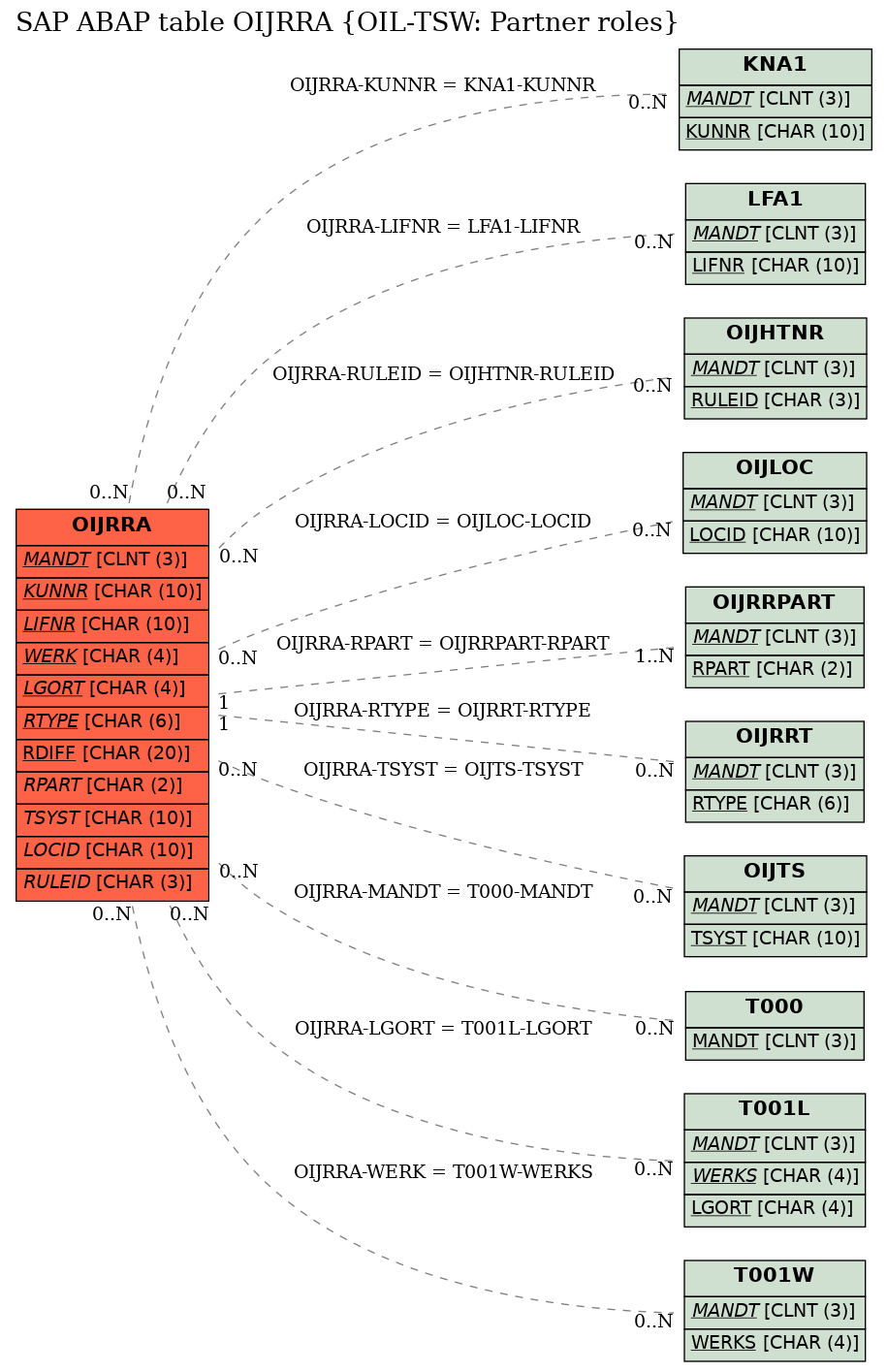

E-R Diagram for table OIJRRA (OIL-TSW: Partner roles)

Foreign Key tables (10)

KNA1 {General Data in Customer Master}
LFA1 {Vendor Master (General Section)}
OIJHTNR {OIL-TSW: Ticket Number Rules}
OIJLOC {Location table}
OIJRRPART {OIL-TSW : Partner Roles -> Role Partner Types}
OIJRRT {OIL-TSW: Partner role types}
OIJTS {Transport system (IS-Oil TSW standard/core object )}
T000 {Clients}
T001L {Storage Locations}
T001W {Plants/Branches}
