SAP ABAP Table `SDIAG_CH_PATH` {Storage of Customer-Specific File Paths for SM Diagnostics}

Home

                title {label: "SAP ABAP table SDIAG_CH_PATH {Storage of Customer-Specific File Paths for SM Diagnostics}", size: "20"}

# Entities

[SDIAG_CH_PATH] {bgcolor: "tomato"}
*KONZS {label: "CHAR (10)"}
*PRODUCT {label: "CHAR (20)"}
*INSTANCE {label: "CHAR (20)"}
*+COMPONENT {label: "CHAR (20)"}
*+HOSTNAME {label: "CHAR (20)"}
*+SYSTEMNAME {label: "CHAR (8)"}
*+SYSTEMTYPE {label: "CHAR (10)"}
*ID {label: "CHAR (32)"}

[SMSY_COMPONENT] {bgcolor: "#d0e0d0"}
*COMPONENT {label: "CHAR (20)"}

[SMSY_HOST] {bgcolor: "#d0e0d0"}
*HOSTNAME {label: "CHAR (20)"}
*KONZS {label: "CHAR (10)"}
*VERSION {label: "CHAR (10)"}

[SMSY_SYSTEM] {bgcolor: "#d0e0d0"}
*SYSTEMNAME {label: "CHAR (8)"}
*KONZS {label: "CHAR (10)"}
*VERSION {label: "CHAR (10)"}
*+SYSTEMTYPE {label: "CHAR (10)"}

[SMSY_SYSTEMTYPE] {bgcolor: "#d0e0d0"}
*SYSTEMTYPE {label: "CHAR (10)"}

# Relationships

SDIAG_CH_PATH 1--* SMSY_COMPONENT {label: "SDIAG_CH_PATH-COMPONENT = SMSY_COMPONENT-COMPONENT"}
SDIAG_CH_PATH *--* SMSY_HOST {label: "SDIAG_CH_PATH-HOSTNAME = SMSY_HOST-HOSTNAME"}
SDIAG_CH_PATH 1--* SMSY_SYSTEM {label: "SDIAG_CH_PATH-SYSTEMNAME = SMSY_SYSTEM-SYSTEMNAME"}
SDIAG_CH_PATH 1--* SMSY_SYSTEMTYPE {label: "SDIAG_CH_PATH-SYSTEMTYPE = SMSY_SYSTEMTYPE-SYSTEMTYPE"}

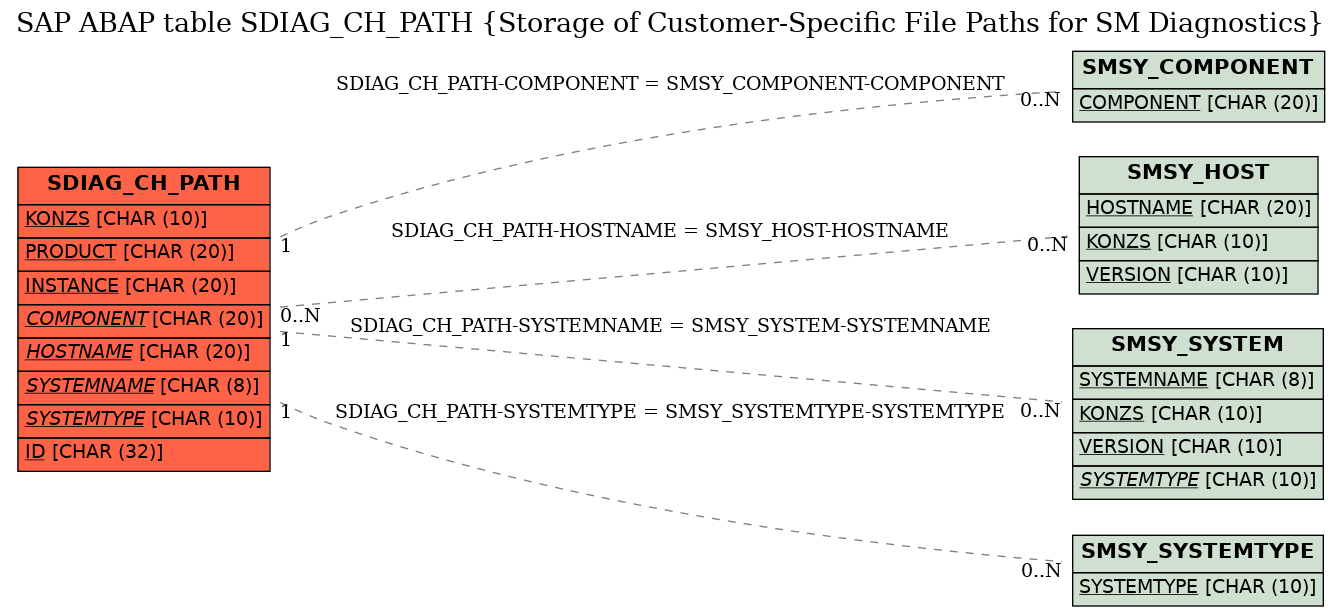

E-R Diagram for table SDIAG_CH_PATH (Storage of Customer-Specific File Paths for SM Diagnostics)

Foreign Key tables (4)

SMSY_COMPONENT {Components}
SMSY_HOST {Hardware Instance}
SMSY_SYSTEM {Product Systems}
SMSY_SYSTEMTYPE {System Type}
