SAP ABAP Table `SICL928` {BRF: Screen Structure for TICL928 (Activities)}

Home

                title {label: "SAP ABAP table SICL928 {BRF: Screen Structure for TICL928 (Activities)}", size: "20"}

# Entities

[SICL928] {bgcolor: "tomato"}
+CLIENT {label: "CLNT (3)"}
+APPLCLASS {label: "CHAR (30)"}
+ACTION {label: "CHAR (20)"}
ACTIVITY {label: "CHAR (6)"}
+EXPRESSION_1 {label: "CHAR (20)"}
+EXPRESSION_2 {label: "CHAR (20)"}
+EXPRESSION_3 {label: "CHAR (20)"}
+EXPRESSION_4 {label: "CHAR (20)"}
+DUEDATE1 {label: "CHAR (20)"}
+DUEDATE2 {label: "CHAR (20)"}
+DUEDATE3 {label: "CHAR (20)"}

[T000] {bgcolor: "#d0e0d0"}
*MANDT {label: "CLNT (3)"}

[TBRF100] {bgcolor: "#d0e0d0"}
*+CLIENT {label: "CLNT (3)"}
*IMPORT_STATUS {label: "CHAR (1)"}
*+APPLCLASS {label: "CHAR (30)"}

[TBRF150] {bgcolor: "#d0e0d0"}
*+CLIENT {label: "CLNT (3)"}
*IMPORT_STATUS {label: "CHAR (1)"}
*+APPLCLASS {label: "CHAR (30)"}
*EXPRESSION {label: "CHAR (20)"}
*VERSION {label: "NUMC (4)"}

[TBRF170] {bgcolor: "#d0e0d0"}
*+CLIENT {label: "CLNT (3)"}
*IMPORT_STATUS {label: "CHAR (1)"}
*+APPLCLASS {label: "CHAR (30)"}
*ACTION {label: "CHAR (20)"}
*VERSION {label: "NUMC (4)"}

# Relationships

SICL928 *--* TBRF170 {label: "SICL928-ACTION = TBRF170-ACTION"}
SICL928 *--* TBRF100 {label: "SICL928-APPLCLASS = TBRF100-APPLCLASS"}
SICL928 *--* T000 {label: "SICL928-CLIENT = T000-MANDT"}
SICL928 *--* TBRF150 {label: "SICL928-DUEDATE1 = TBRF150-EXPRESSION"}
SICL928 *--* TBRF150 {label: "SICL928-DUEDATE2 = TBRF150-EXPRESSION"}
SICL928 *--* TBRF150 {label: "SICL928-DUEDATE3 = TBRF150-EXPRESSION"}
SICL928 *--* TBRF150 {label: "SICL928-EXPRESSION_1 = TBRF150-EXPRESSION"}
SICL928 *--* TBRF150 {label: "SICL928-EXPRESSION_2 = TBRF150-EXPRESSION"}
SICL928 *--* TBRF150 {label: "SICL928-EXPRESSION_3 = TBRF150-EXPRESSION"}
SICL928 *--* TBRF150 {label: "SICL928-EXPRESSION_4 = TBRF150-EXPRESSION"}

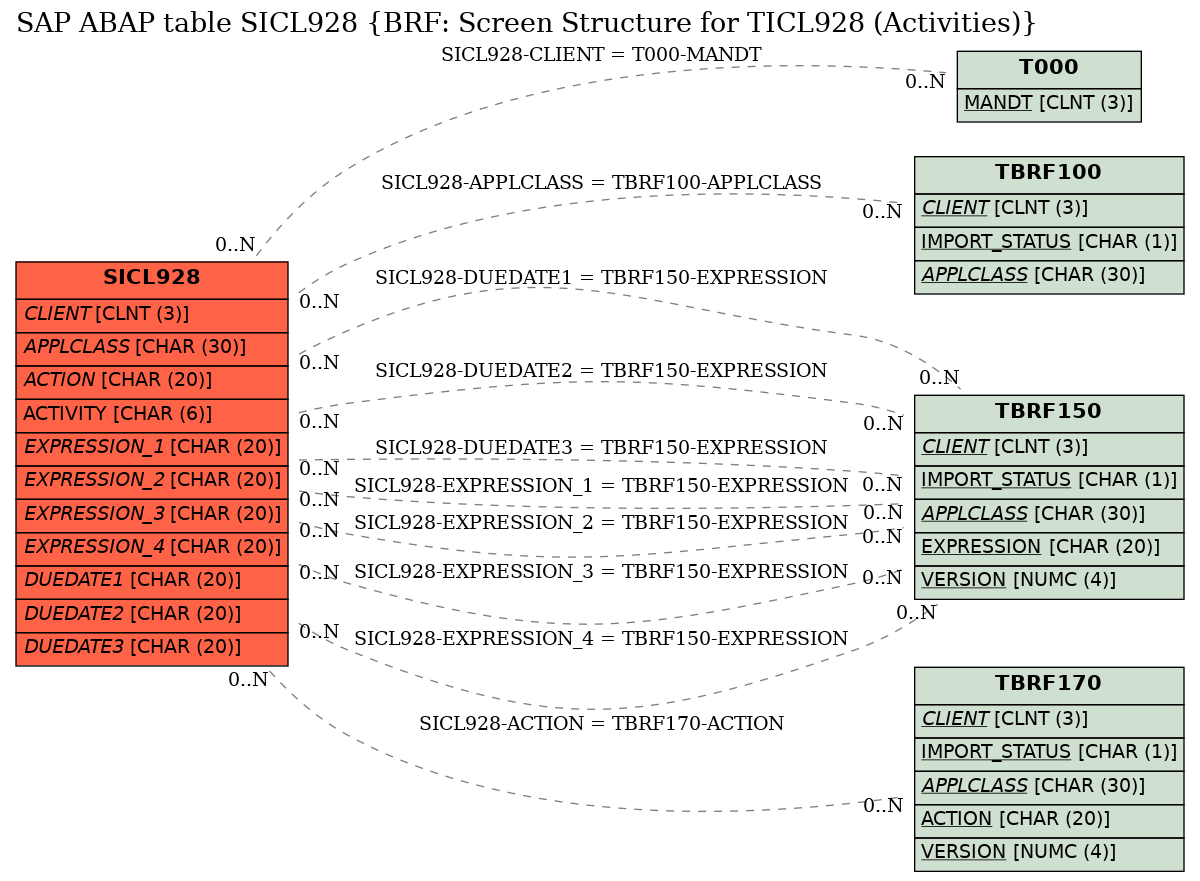

E-R Diagram for table SICL928 (BRF: Screen Structure for TICL928 (Activities))

Foreign Key tables (4)

T000 {Clients}
TBRF100 {BRF: Application Class (Customer-Specific Features)}
TBRF150 {BRF: Expression}
TBRF170 {BRF: Actions}
