SAP ABAP Table `USMD0020` {Data Model: Entity Types}

Home

                title {label: "SAP ABAP table USMD0020 {Data Model: Entity Types}", size: "20"}

# Entities

[USMD0020] {bgcolor: "tomato"}
*+USMD_MODEL {label: "CHAR (2)"}
*+USMD_OBJSTAT {label: "CHAR (1)"}
*USMD_ENTITY {label: "CHAR (9)"}
+TMP_KEY_NROBJ {label: "CHAR (10)"}
+TAB_SOURCE {label: "CHAR (30)"}
+FLD_SOURCE {label: "CHAR (30)"}
+TAB_XFIELD {label: "CHAR (30)"}

[DD02L] {bgcolor: "#d0e0d0"}
*TABNAME {label: "CHAR (30)"}
*AS4LOCAL {label: "CHAR (1)"}
*AS4VERS {label: "NUMC (4)"}

[DD03L] {bgcolor: "#d0e0d0"}
*+TABNAME {label: "CHAR (30)"}
*FIELDNAME {label: "CHAR (30)"}
*AS4LOCAL {label: "CHAR (1)"}
*AS4VERS {label: "NUMC (4)"}
*POSITION {label: "NUMC (4)"}

[TNRO] {bgcolor: "#d0e0d0"}
*OBJECT {label: "CHAR (10)"}

[USMD001C] {bgcolor: "#d0e0d0"}
*USMD_MODEL {label: "CHAR (2)"}
*USMD_OBJSTAT {label: "CHAR (1)"}

# Relationships

USMD0020 *--* DD03L {label: "USMD0020-FLD_SOURCE = DD03L-FIELDNAME"}
USMD0020 *--* DD02L {label: "USMD0020-TAB_SOURCE = DD02L-TABNAME"}
USMD0020 *--* DD02L {label: "USMD0020-TAB_XFIELD = DD02L-TABNAME"}
USMD0020 1--* TNRO {label: "USMD0020-TMP_KEY_NROBJ = TNRO-OBJECT"}
USMD0020 *--* USMD001C {label: "USMD0020-USMD_MODEL = USMD001C-USMD_MODEL"}
USMD0020 *--* USMD001C {label: "USMD0020-USMD_OBJSTAT = USMD001C-USMD_OBJSTAT"}

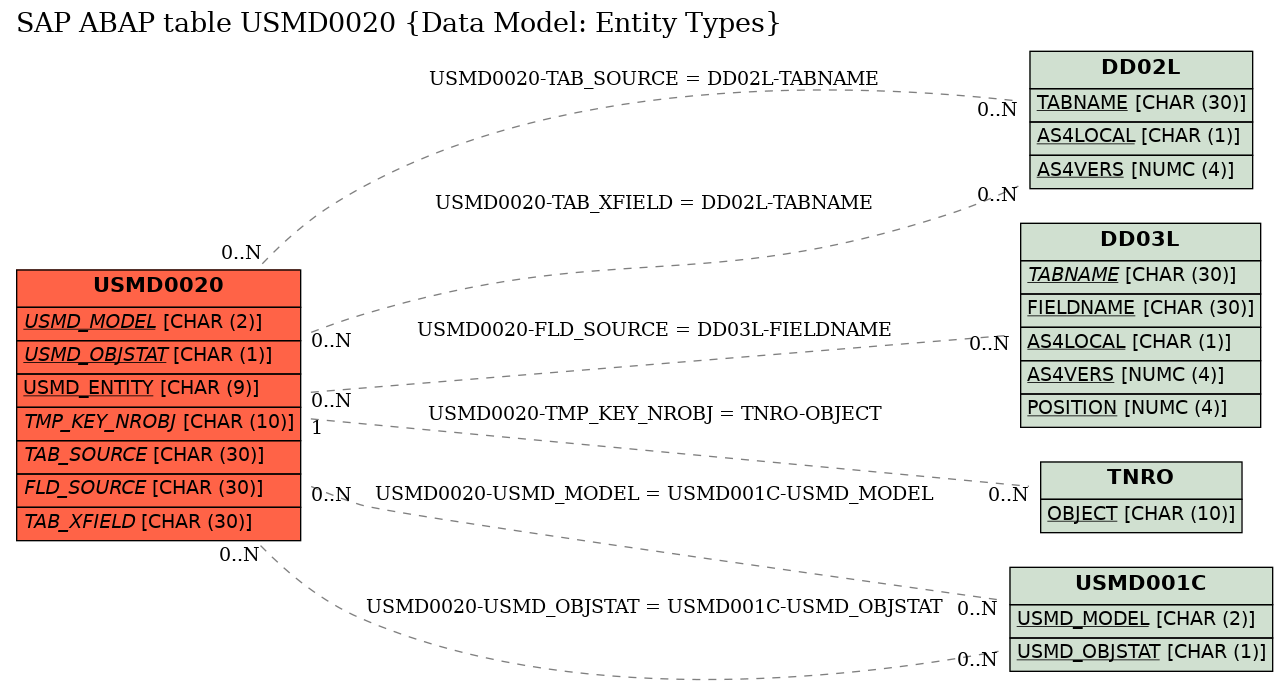

E-R Diagram for table USMD0020 (Data Model: Entity Types)

Foreign Key tables (4)

DD02L {SAP Tables}
DD03L {Table Fields}
TNRO {Definition of number range objects}
USMD001C {Data Model: Check Table}
