SAP ABAP Table `VTRDI` {Shipment Planning Index}

Home

                title {label: "SAP ABAP table VTRDI {Shipment Planning Index}", size: "20"}

# Entities

[VTRDI] {bgcolor: "tomato"}
*MANDT {label: "CLNT (3)"}
*TRSTA {label: "CHAR (1)"}
*+VSTEL {label: "CHAR (4)"}
*TDDAT {label: "DATS (8)"}
*+VBELN {label: "CHAR (10)"}
+LSTEL {label: "CHAR (2)"}
+ROUTE {label: "CHAR (6)"}
+TRAGR {label: "CHAR (4)"}
+VSBED {label: "CHAR (2)"}
+LAND1 {label: "CHAR (3)"}
+LZONE {label: "CHAR (10)"}
+GEWEI {label: "UNIT (3)"}
+VOLEH {label: "UNIT (3)"}
+KUNNR {label: "CHAR (10)"}
+SPDNR {label: "CHAR (10)"}
+INCO1 {label: "CHAR (3)"}
+LPRIO {label: "NUMC (2)"}
+TRSPG {label: "CHAR (2)"}
+TRATY {label: "CHAR (4)"}
+TRMTYP {label: "CHAR (18)"}
+VSART {label: "CHAR (2)"}
+SDABW {label: "CHAR (4)"}
+RELOC_ID {label: "CHAR (10)"}
+RELOC_SEQ_ID {label: "CHAR (4)"}

[_ISDFPS_REL] {bgcolor: "#d0e0d0"}
*+MANDT {label: "CLNT (3)"}
*RELOC_ID {label: "CHAR (10)"}

[_ISDFPS_RELSEQ] {bgcolor: "#d0e0d0"}
*+MANDT {label: "CLNT (3)"}
*RELOC_SEQ_ID {label: "CHAR (4)"}

[KNA1] {bgcolor: "#d0e0d0"}
*+MANDT {label: "CLNT (3)"}
*KUNNR {label: "CHAR (10)"}

[LFA1] {bgcolor: "#d0e0d0"}
*+MANDT {label: "CLNT (3)"}
*LIFNR {label: "CHAR (10)"}

[MARA] {bgcolor: "#d0e0d0"}
*+MANDT {label: "CLNT (3)"}
*MATNR {label: "CHAR (18)"}

[T005] {bgcolor: "#d0e0d0"}
*+MANDT {label: "CLNT (3)"}
*LAND1 {label: "CHAR (3)"}

[T006] {bgcolor: "#d0e0d0"}
*+MANDT {label: "CLNT (3)"}
*MSEHI {label: "UNIT (3)"}

[T173] {bgcolor: "#d0e0d0"}
*MANDT {label: "CLNT (3)"}
*VSART {label: "CHAR (2)"}

[TINC] {bgcolor: "#d0e0d0"}
*MANDT {label: "CLNT (3)"}
*INCO1 {label: "CHAR (3)"}

[TPRIO] {bgcolor: "#d0e0d0"}
*MANDT {label: "CLNT (3)"}
*LPRIO {label: "NUMC (2)"}

[TTGR] {bgcolor: "#d0e0d0"}
*MANDT {label: "CLNT (3)"}
*TRAGR {label: "CHAR (4)"}

[TTSG] {bgcolor: "#d0e0d0"}
*+MANDT {label: "CLNT (3)"}
*TRSPG {label: "CHAR (2)"}

[TVLA] {bgcolor: "#d0e0d0"}
*MANDT {label: "CLNT (3)"}
*+VSTEL {label: "CHAR (4)"}
*LSTEL {label: "CHAR (2)"}

[TVRO] {bgcolor: "#d0e0d0"}
*+MANDT {label: "CLNT (3)"}
*ROUTE {label: "CHAR (6)"}

[TVSAK] {bgcolor: "#d0e0d0"}
*MANDT {label: "CLNT (3)"}
*SDABW {label: "CHAR (4)"}

[TVSB] {bgcolor: "#d0e0d0"}
*MANDT {label: "CLNT (3)"}
*VSBED {label: "CHAR (2)"}

[TVST] {bgcolor: "#d0e0d0"}
*+MANDT {label: "CLNT (3)"}
*VSTEL {label: "CHAR (4)"}

[TVTY] {bgcolor: "#d0e0d0"}
*+MANDT {label: "CLNT (3)"}
*TRATY {label: "CHAR (4)"}

[TZONE] {bgcolor: "#d0e0d0"}
*+MANDT {label: "CLNT (3)"}
*+LAND1 {label: "CHAR (3)"}
*ZONE1 {label: "CHAR (10)"}

[VBUK] {bgcolor: "#d0e0d0"}
*+MANDT {label: "CLNT (3)"}
*VBELN {label: "CHAR (10)"}

# Relationships

VTRDI 1--* T006 {label: "VTRDI-GEWEI = T006-MSEHI"}
VTRDI 1--* TINC {label: "VTRDI-INCO1 = TINC-INCO1"}
VTRDI 1--* KNA1 {label: "VTRDI-KUNNR = KNA1-KUNNR"}
VTRDI 1--* T005 {label: "VTRDI-LAND1 = T005-LAND1"}
VTRDI 1--* TPRIO {label: "VTRDI-LPRIO = TPRIO-LPRIO"}
VTRDI 1--* TVLA {label: "VTRDI-LSTEL = TVLA-LSTEL"}
VTRDI 1--* TZONE {label: "VTRDI-LZONE = TZONE-ZONE1"}
VTRDI *--* _ISDFPS_REL {label: "VTRDI-RELOC_ID = /ISDFPS/REL-RELOC_ID"}
VTRDI *--* _ISDFPS_RELSEQ {label: "VTRDI-RELOC_SEQ_ID = /ISDFPS/RELSEQ-RELOC_SEQ_ID"}
VTRDI 1--* TVRO {label: "VTRDI-ROUTE = TVRO-ROUTE"}
VTRDI *--* TVSAK {label: "VTRDI-SDABW = TVSAK-SDABW"}
VTRDI 1--* LFA1 {label: "VTRDI-SPDNR = LFA1-LIFNR"}
VTRDI 1--* TTGR {label: "VTRDI-TRAGR = TTGR-TRAGR"}
VTRDI *--* TVTY {label: "VTRDI-TRATY = TVTY-TRATY"}
VTRDI *--* MARA {label: "VTRDI-TRMTYP = MARA-MATNR"}
VTRDI 1--* TTSG {label: "VTRDI-TRSPG = TTSG-TRSPG"}
VTRDI 1--* VBUK {label: "VTRDI-VBELN = VBUK-VBELN"}
VTRDI 1--* T006 {label: "VTRDI-VOLEH = T006-MSEHI"}
VTRDI ?--* T173 {label: "VTRDI-VSART = T173-VSART"}
VTRDI 1--* TVSB {label: "VTRDI-VSBED = TVSB-VSBED"}
VTRDI 1--* TVST {label: "VTRDI-VSTEL = TVST-VSTEL"}

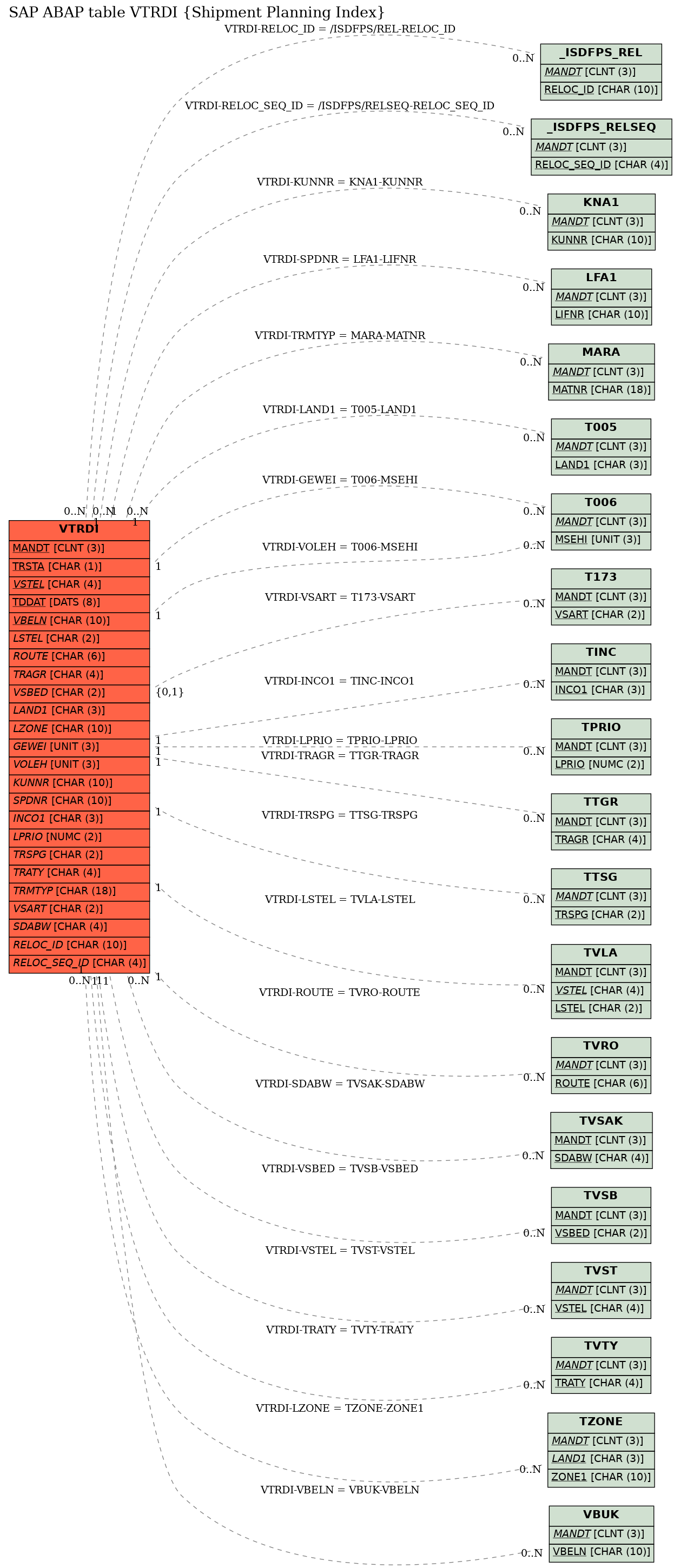

E-R Diagram for table VTRDI (Shipment Planning Index)

Foreign Key tables (20)

/ISDFPS/REL {Definition of Relocation}
/ISDFPS/RELSEQ {Definition of Relocation Steps}
KNA1 {General Data in Customer Master}
LFA1 {Vendor Master (General Section)}
MARA {General Material Data}
T005 {Countries}
T006 {Units of Measurement}
T173 {Routes: Mode of Transport for Each Shipping Type}
TINC {Customers: Incoterms}
TPRIO {Customers: Delivery Priorities}
TTGR {Delivery Scheduling: Transportation Groups}
TTSG {Shipment Blocking Reason}
TVLA {Org.unit: Loading points per shipping point}
TVRO {Routes}
TVSAK {Special Processing Indicator}
TVSB {Shipping Conditions}
TVST {Organizational Unit: Shipping Points}
TVTY {Packaging Material Types}
TZONE {Customers: Regional zones}
VBUK {Sales Document: Header Status and Administrative Data}
